A Wire rope hoist is a device used for lifting or lowering a load mechanically. It is electrically operated by Motor and the motor is attached to Gear Box by means of Coupling. A hoist can be built as one integral-package unit, designed for cost-effective purchasing and moderate use, or it can be built as a built-up custom unit, designed for durability and performance.
Designed and developed as per the market advancements, these PIONEER Wire Rope Hoists are ideally designed to meet the customers’ needs and demands in the most prominent manner. Reckoned for sturdy construction, optimum performance and corrosion resistant nature, these Electric Wire Rope Hoists can be availed from us in diverse standard and custom made options at market leading prices.
| Description | Units | 0.5 Ton | 1 Ton | 2 Ton | 3 Ton | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lift | Mtrs. | 6 | 9 | 12 | 6 | 9 | 12 | 6 | 9 | 12 | 6 | 9 | 12 |

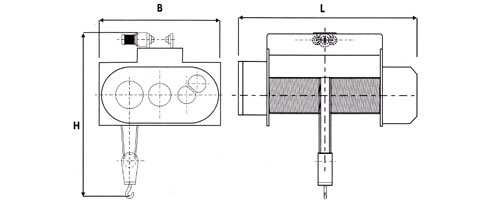

| Length (L) | MM | 960 | 1200 | 1460 | 1035 | 1235 | 1500 | 1035 | 1245 | 1550 | 1035 | 1250 | 1600 |
| Breadth (B) | MM | 615 | 650 | 660 | 885 | ||||||||
| Height (H) | MM | 890 | 910 | 980 | 1075 | ||||||||
| Rope Falls | No. | 4 | 4 | 4 | 4 | ||||||||
| Hoist Motor | H.P. (KW) | 1.0 (0.74) | 1.5 (1.11) | 2 (1.48) | 3 (2.2) | 3 (2.2) | 5 (3.7) | 5 (3.7) | 7.5 (5.55) | ||||
| Trolley Motor | H.P. (KW) | 0.25 (0.18) | 0.5 (0.37) | 0.5 (0.37) | 0.75 (0.55) | ||||||||
| Hoist Speed | MTRS./MIN. | 4 | 4 | 4 | 4 | ||||||||
| Trolley Speed | MTRS./MIN. | 16 | 16 | 16 | 16 | ||||||||
| Rope Size | MM | 8 | 8 | 8 | 10 | ||||||||
| Description | Units | 5 Ton | 7.5 Ton | 10 Ton | 15 Ton | 20 Ton | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lift | Mtrs. | 6 | 9 | 12 | 6 | 9 | 12 | 6 | 9 | 6 | 9 | 6 | 9 |
| Length (L) | MM | 1150 | 1260 | 1330 | 1275 | 1410 | 1625 | 1345 | 1500 | 1750 | 1850 | 1950 | 2000 |
| Breadth (B) | MM | 1025 | 1105 | 1230 | 1700 | 2000 | |||||||
| Height (H) | MM | 1150 | 1275 | 1400 | 1475 | 1600 | |||||||
| Rope Falls | No. | 4 | 4 | 4 | 4 | 4 | |||||||
| Hoist Motor | H.P. (KW) | 7.5 (5.55) | 10 (7.4) | 10 (7.4) | 15 (11.1) | 15 (11.1) | 20 (14.8) | 25 (18.5) | |||||
| Trolley Motor | H.P. (KW) | 1 (0.74) | 1.5 (1.11) | 1.5 (1.11) | 2 (1.48) | 3 (2.2) | |||||||
| Hoist Speed | MTRS./MIN. | 4 | 3 | 3 | 3 | 3 | |||||||
| Trolley Speed | MTRS./MIN. | 16 | 14 | 12 | 12 | 12 | |||||||
| Rope Size | MM | 12 | 14 | 16 | 20 | 25 | |||||||
