Single Girder E.O.T. Cranes

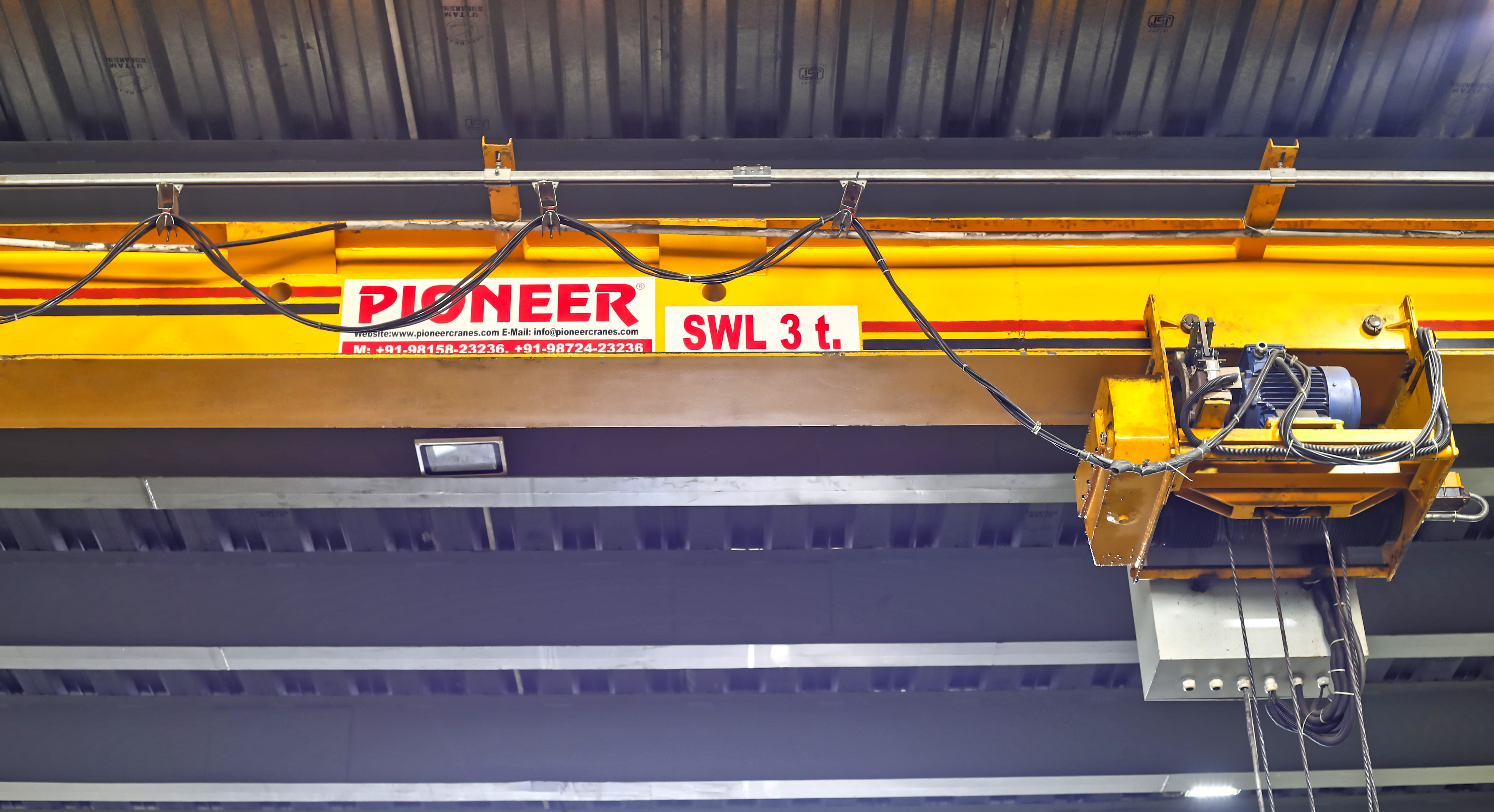

About Single Girder E.O.T. Cranes



Single Girder Overhead E.O.T. Cranes are adapted for a Light duty range of daily usage in plants and workshops to ease material flow.These Single Girder Overhead travelling E.O.T. Cranes are built for your lifting needs up to 20 T and up to 40 meters span, and can be installed in new or existing buildings. Our single girder overhead travelling E.O.T. Cranes are built with welded box sections only.

The highly important connection between girder and end-carriage deserves a special attention to avoid long term wear and is accurately prepared on assembly bench.Our Overhead Travelling E.O.T. Cranes are designed and made according to your instructions and our quality procedures in accordance with IS: 3177/1999.

Capacity in Tons Span in Metres Head Room Clearance in mm HRC End Clearance in mm ELS/ERS WHEEL BASE(In mm) HOOK APROACH (Left Side/Right Side)(In mm) Total Wt. of Crane in tons (approx.) Wheel load of crane in tons (approx.)
1 5 700 220 2000 750 1.00 1
10 800 220 2500 750 1.00 1
15 850 220 3000 750 3.00 1
2 5 800 250 2000 750 2.00 1
10 900 250 2500 750 2.00 2
15 1000 250 3000 750 4.00 2
20 1200 250 4000 750 5.00 2
3 5 800 250 2000 850 2.00 2
10 900 250 2500 850 3.00 2
15 1000 250 3000 850 4.00 3
20 1250 250 4000 850 7.00 3
5 10 950 250 2500 950 3.00 3
15 1200 250 3000 950 6.00 4
20 1300 250 4000 950 7.70 4
7.5 10 1000 250 2500 1000 6.00 5
15 1250 250 3000 1000 7.00 5
20 1400 250 4000 1000 9.00 7
7.5 10 1000 250 2500 1000 6.00 5
15 1250 250 3000 1000 7.00 5
20 1400 250 4000 1000 9.00 7
10 10 1100 270 2500 1100 5.00 6
15 1350 270 3000 1100 8.00 7
20 1500 275 4000 1100 10.00 7
15 10 1200 300 2500 1100 7.00 9
15 1500 300 3000 1100 10.00 10
20 1600 300 4000 1100 12.00 11
